Industrial welding applications demand more than simply high output power. A reliable industrial MIG welder needs to provide stable arc performance, consistent wire feeding, sufficient duty cycle, convenient mobility, and safety protection for demanding working environments.
For construction, automotive modification, fabrication, and industrial manufacturing, choosing the right MIG welding machine can directly affect welding quality, productivity, and operating efficiency.

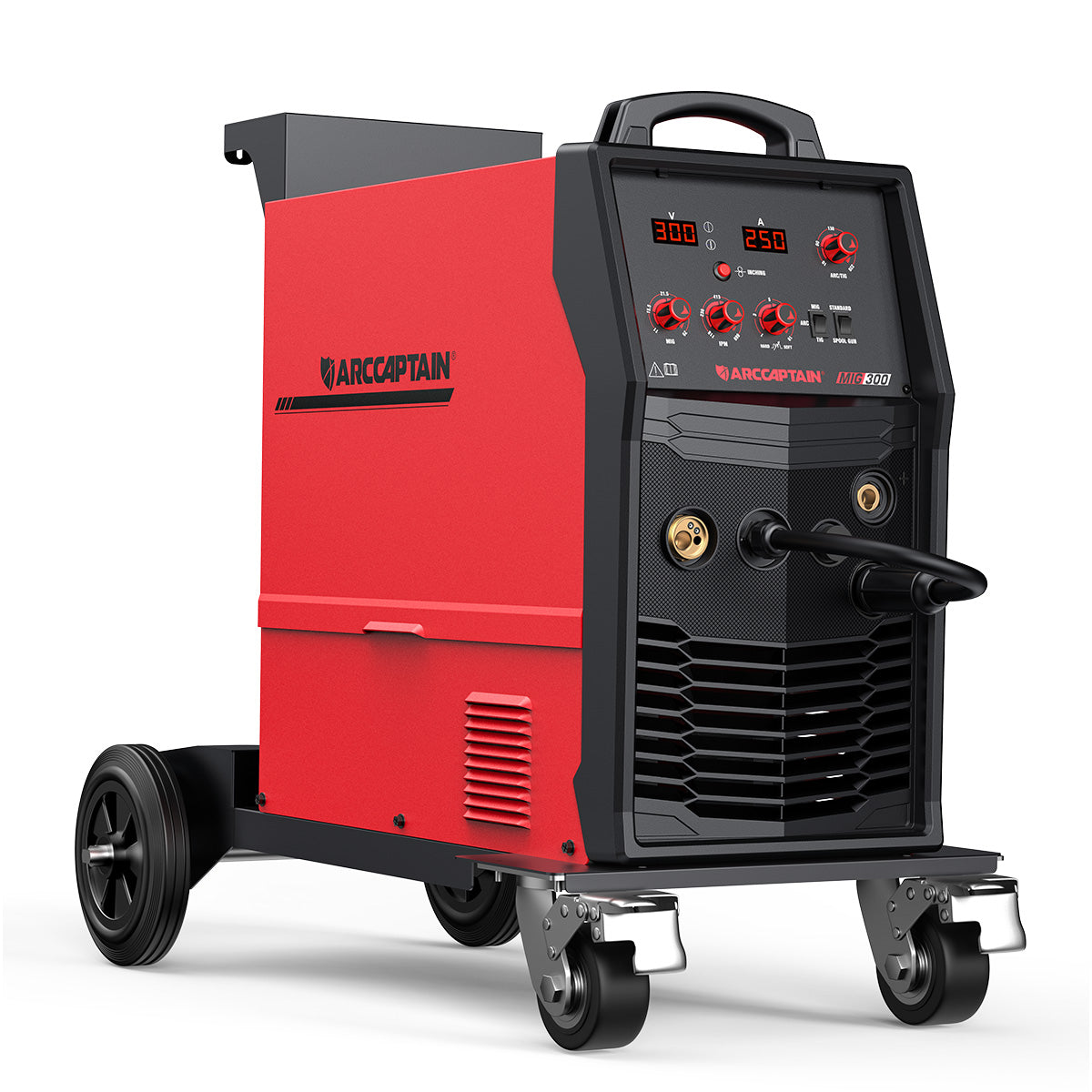

The ARCCAPTAIN MIG300 is a 250A heavy-duty multi-process welding machine designed for demanding welding applications. With an integrated trolley, dual-drive wire feeding system, adjustable inductance, digital voltage and current display, and CSA certification, it is built for professional users who need reliable welding performance and mobility.
What Is an Industrial MIG Welder?
An industrial MIG welder is a welding machine designed to handle demanding metal fabrication and production applications. Compared with compact DIY welding machines, industrial models typically focus on higher welding capacity, stable wire feeding, longer operating time, durability, and better control over welding parameters.
MIG welding uses a continuously fed wire electrode to create an arc between the wire and the workpiece. Shielding gas protects the welding area from atmospheric contamination, allowing operators to produce clean and consistent welds when the correct parameters are selected.
Industrial MIG welding machines are commonly used for:
- Steel fabrication
- Construction projects
- Automotive repair and modification
- Metal manufacturing
- Equipment fabrication
- Structural welding
- Heavy-duty repair work
- Multi-layer welding applications
For these applications, welding power is important, but it is only one part of overall machine performance.
Key Features to Consider When Choosing a Heavy-Duty MIG Welder
When selecting an industrial MIG welding machine, buyers should evaluate several important factors rather than focusing only on maximum amperage.
1. Welding Output and Material Thickness
One of the first specifications to check is the machine's output current.
The ARCCAPTAIN MIG300 provides:
- MIG: 30–250A
- MMA: 10–220A
- Lift TIG: 10–220A
- MIG voltage: 11–29V
- MMA voltage: 20.4–28.8V
- Lift TIG voltage: 10.4–18.8V
With output power up to 250A, the MIG300 can handle demanding welding applications and can weld steel plates up to 1/2 inch under appropriate welding conditions.
It also supports multi-layer welding, making it suitable for applications where thicker materials require multiple welding passes.
Weldable materials include:
- Steel
- Stainless steel
- Cast iron
- Carbon steel
For professional fabricators, this versatility allows one machine to cover a wider range of welding tasks.
2. Stable Wire Feeding Is Critical for Consistent Welds
Wire feeding directly affects arc stability and weld consistency.
If wire feeding is inconsistent, operators may experience unstable arcs, irregular weld beads, spatter, or difficulty maintaining the desired welding parameters.
The MIG300 features a dual-drive motor wire feeding system, designed to provide smoother and more stable wire feeding.
Its adjustable wire feed speed ranges from:
50–457 IPM
This wide adjustment range provides flexibility for different materials, wire diameters, and welding applications.
The machine also accepts larger 33 lb (15 kg) and 44 lb (20 kg) wire spools, making it practical for professional workshops and production environments where frequent spool replacement can reduce productivity.
3. Adjustable Inductance for Better Arc Control
Different welding applications can require different arc characteristics.
The MIG300 features adjustable inductance, allowing operators to control the arc response and optimize welding performance for different applications.
Adjustable inductance can help welders fine-tune the welding arc according to material, welding position, wire type, and desired weld characteristics.
For professional welding operations, this type of parameter adjustment provides greater control compared with machines with limited arc adjustment capabilities.
4. Digital Current and Voltage Display
Accurate welding parameters are important for repeatable results.
The MIG300 is equipped with a digital display for welding current and voltage, allowing operators to monitor key welding parameters during operation.
Digital parameter visibility is especially useful in professional environments where operators need to:
- Set repeatable welding parameters
- Monitor current and voltage
- Adjust settings for different materials
- Maintain consistent welding procedures
- Troubleshoot welding performance
For fabrication shops and industrial users, clear parameter information can make daily machine operation more convenient.
5. Integrated Trolley for Improved Mobility
Industrial welding machines can be heavy and difficult to move between work areas.
The MIG300 weighs approximately 106 lb (48 kg) and features an integrated trolley design to improve mobility.
Instead of requiring a separate welding cart, the integrated trolley allows the machine to be moved more easily around workshops, fabrication areas, and job sites.
This design can be particularly useful for:
Construction
Welding equipment may need to move between different areas of a job site.
Automotive Modification
Fabricators may work on different vehicles or move the machine around a workshop.
Industrial Manufacturing
The machine can be positioned closer to different fabrication stations as needed.
6. Durable Housing for Professional Working Environments
Industrial welding equipment needs to withstand regular handling and demanding workshop conditions.
The MIG300 features an impact-resistant housing designed to provide additional protection during daily use.
The machine also incorporates an internal light that makes wire replacement more convenient, particularly in areas where workshop lighting is limited.
Another practical feature is the built-in anti-stick function, which can help reduce electrode sticking during MMA welding.
Together, these design features focus on making routine operation and maintenance easier for professional users.
7. Multi-Process Welding Capability
Although the MIG300 is primarily designed as a heavy-duty MIG welding machine, it also supports multiple welding processes.
MIG Welding
MIG provides continuous wire feeding and is widely used for fabrication, automotive work, construction, and general metal manufacturing.
MMA Welding
With an output range of 10–220A, the machine can also perform stick welding for applications where electrode welding is preferred.
Lift TIG Welding
The MIG300 supports Lift TIG from 10–220A, providing additional flexibility for users who need TIG capability for specific applications.
This multi-process design allows professional users to handle different welding requirements with one machine.
8. Built-In Safety Protection
Industrial welding machines operate under high electrical loads and high temperatures. Safety protection is therefore an important consideration when selecting welding equipment.
The MIG300 includes:
- Overload protection
- Overheating protection
- Over-current protection
- Built-in anti-stick function
The machine has an IP21S protection degree and follows IEC 60974-1 as its applicable standard.
The MIG300 is also CSA certified, providing an important certification reference for professional users and distributors serving the North American market.
ARCCAPTAIN MIG300 Specifications
For distributors, welding supply stores, contractors, and professional users, the following specifications provide a quick overview of the machine's capabilities.
| Specification | MIG300 |
|---|---|
| Input Voltage | AC 240V ±15% |
| Frequency | 50/60Hz |
| MIG Output Current | 30–250A |
| MIG Voltage | 11–29V |
| MMA Output Current | 10–220A |
| MMA Voltage | 20.4–28.8V |
| Lift TIG Current | 10–220A |
| Lift TIG Voltage | 10.4–18.8V |
| Wire Feed Speed | 50–457 IPM |
| No-Load Voltage | U0 = 52V |
| Duty Cycle | 35% @ 40°C |
| Standard | IEC 60974-1 |
| Protection Degree | IP21S |
| Dimensions | 35.4 × 17.7 × 29.7 in |
| Dimensions | 900 × 450 × 755 mm |
| Net Weight | 106 lb / 48 kg |
| Certification | CSA |
Where Can the MIG300 Be Used?
The combination of 250A MIG output, stable wire feeding, large spool capacity, adjustable inductance, and integrated mobility makes the MIG300 suitable for a variety of professional applications.
Construction and Structural Fabrication
Construction projects often require welding thick steel components and working in different areas of a job site.
The MIG300's integrated trolley makes transportation easier, while its 250A MIG output and multi-layer welding capability provide the power required for many structural fabrication tasks.
Automotive Modification and Repair
Automotive workshops need flexible welding equipment for different vehicle structures and metal components.
The MIG300 provides MIG, MMA, and Lift TIG capabilities, giving technicians more flexibility when working with different materials and applications.
Industrial Manufacturing
For manufacturing and fabrication businesses, welding consistency and productivity are critical.
The dual-drive wire feeding system, adjustable wire feed speed, digital display, large wire spool capacity, and adjustable inductance make the MIG300 suitable for professional production environments.
MIG300 vs. a Standard Compact MIG Welder
A compact MIG welder can be convenient for light-duty work, but professional applications often require additional capabilities.
| Feature | Compact MIG Welder | MIG300 |
|---|---|---|
| MIG Output | Typically lower | Up to 250A |
| Wire Spool Capacity | Smaller | 33/44 lb |
| Wire Feed Speed | Limited range | 50–457 IPM |
| Wire Feeding | Standard drive | Dual-drive motor |
| Arc Adjustment | Limited on some models | Adjustable inductance |
| Mobility | Separate cart may be needed | Integrated trolley |
| Multi-Process | Model dependent | MIG / MMA / Lift TIG |
| Digital Display | Model dependent | Current & voltage |
| Thick Steel Applications | Model dependent | Up to 1/2 in steel |
| Certification | Model dependent | CSA |
The right choice ultimately depends on the required welding thickness, operating environment, production volume, and welding processes.
Why Choose a Heavy-Duty MIG Welding Machine?
For professional users, selecting a welding machine is not simply about purchasing the highest amperage available.
A suitable industrial MIG welder should provide a balance of:
Power + Stability + Control + Mobility + Durability + Safety
The ARCCAPTAIN MIG300 combines these features in one heavy-duty welding platform.
With 250A MIG output, 50–457 IPM wire feed speed, dual-drive wire feeding, adjustable inductance, 33/44 lb spool support, integrated trolley, multi-process welding, and CSA certification, the MIG300 is designed for demanding welding environments.
For welding supply distributors, contractors, fabrication shops, automotive professionals, and industrial buyers, it provides a versatile option for professional welding applications.
Looking for an Industrial MIG Welder for Your Business?
If you are a welding equipment distributor, welding supply store, contractor, fabrication company, automotive business, or industrial equipment buyer, the ARCCAPTAIN MIG300 can be considered for professional MIG welding applications.
For wholesale inquiries, distributor opportunities, OEM/ODM requirements, or product information, contact the ARCCAPTAIN team to discuss your requirements.
ARCCAPTAIN MIG300 — Built for Heavy-Duty Welding.
